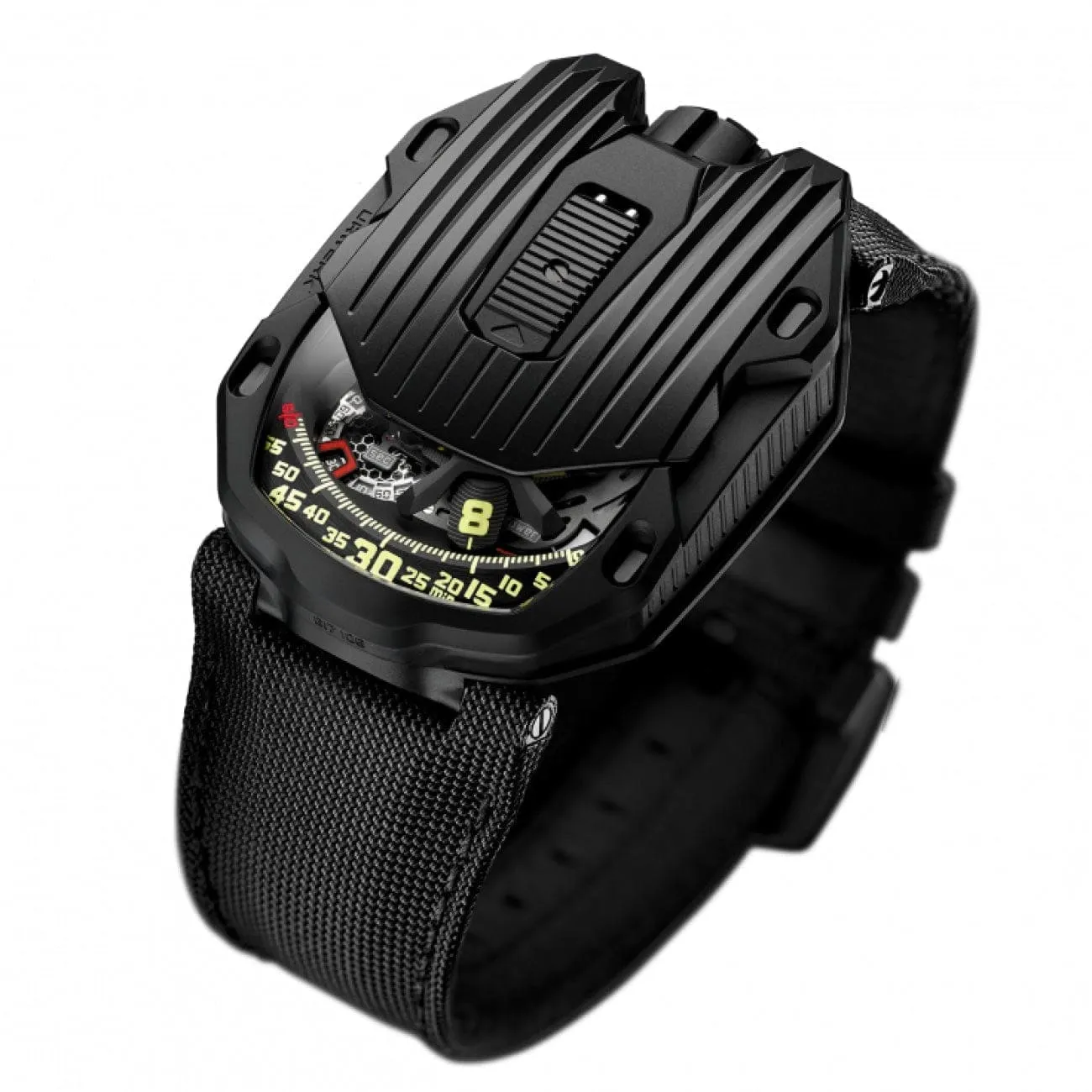

The UR-105 revisits URWERK's iconic satellite indication, which has been an emblematic and instantly recognizable signature element of the brand for 18 years. It is a wandering hour indication based on a carousel which carries the four satellites, each bearing three numerals for the hours. The hours successively sweep past the minutes scale for an analogue and digital display of the time.
HOUR SATELLITE INDICATION AND TURBINE AUTOMATIC
Four satellites, each carrying three hour numerals, successively reveal themselves as they parade past the minute rail to display the time.
The movement¨¹s automatic winding is optimally regulated by dual air turbines on full show on the back.
Dial: Wandering hours; minutes, digital seconds and power reserve
Super-Luminova® treatment on markers, dials, indexes and satellites
Two-position winding crown
On the back: Winding-rate control lever
TECHNICAL DETAILS
Case: Titanium and mirror-polished steel
Dimensions: Width 39.5mm x length: 53mm x thickness: 17.3mm
Crystal: Sapphire crystal with anti-reflective coating
Water resistance: Pressure tested to 3ATM / 100’ / 30m
Movement: UR 5.02 Self-winding mechanical movement coupled to turbines
Jewels: 52
Escapement: Swiss lever
Frequency: 28,800v/h, 4Hz
Power reserve: 48 hours
Materials:

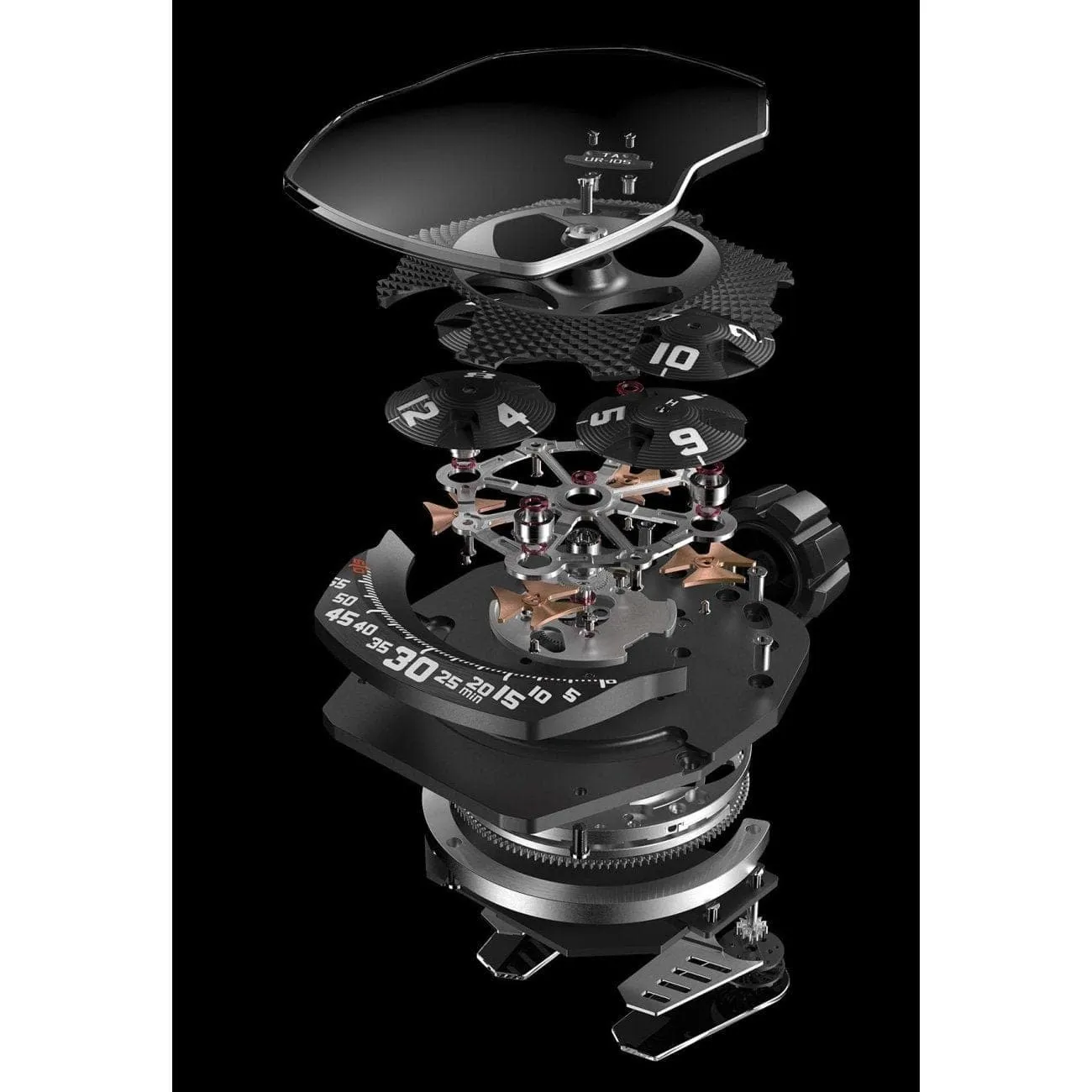

Satellite hours driven by bronze beryllium Geneva crosses
Orbital structure in PEEK (PolyEtherEthercetone)
Carrousel and three main plates in brass
Surface finishes
Perlage and bead-blasting
Chamfered and polished screw heads
Dial: Hours and minutes
Super-Luminova® treatment on markers, dials, indexes and satellites
Two-position winding crown
On the back: Winding-rate control lever
